Handheld thermometer DTM3000-spezial
DTM3000-spezial
The electronic digital thermometer DTM3000-spezial is designed for precise temperature measurements in the range of –20°C to 110°C. The measured temperature from the fixed probe is displayed with a resolution of 0.01°C.Additional Features:
- Stores the minimum and maximum values of a measurement cycle.
- Hold function to keep the current measurement on the display for convenient operation.
Integrated Interface:
Enables easy data transfer via USB to a Windows PC. The user-friendly software is available for free download. The USB interface cable is sold separately (Product No. 10196).
Scope of Delivery:
- DTM3000-special with cable probe (2x100mm)
- Blue hard case
- 9V battery
For special measurement requirements, we also manufacture custom probes according to your specifications. Please use the >>Ask about product<< button. The accuracy may change accordingly.
| Measuring range: | -20...110°C | |
| Resolution: | 0,01°C | |
| Overall accuracy: | ±0,03°C ± 1 Digit | |
| Display: | LCD, 5 digits | 9mm digit height |
| Sensor: | Pt100 | permanently connected to device |
| Probe diameter: | 2mm | or according to customer specification |
| Probe length: | 100mm | or according to customer specification |
| Probe tube material: | 1.4571 (Stainless steel) | |
| Cable length: | ~1400mm | or according to customer specification |
| Cable material: | TSL (Teflon-Silicone) | or according to customer specification |
| Anti-kink spring: | ~60mm | or according to customer specification |
| Interface: | TTL to USB | interface cable optional |
| Operating temperature range: | 0...50°C | |
| Battery life: | ~500h at 1/s | |
| Power supply: | 9V battery, 6F22 | |
| Housing material Display unit: | ABS | black |

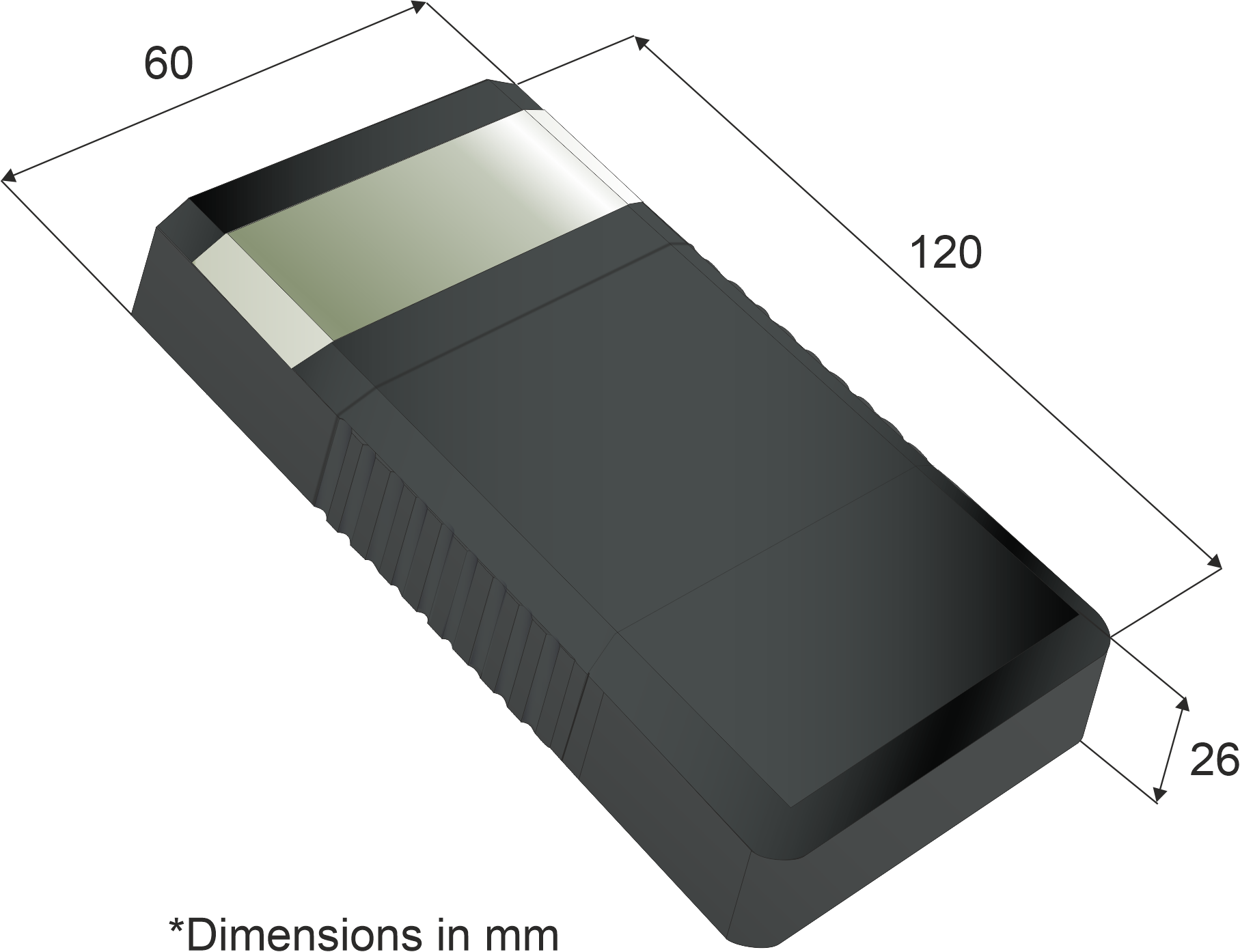

| Housing Dimensions of display unit: | 60x120x25mm | W x H x D, without cable gland |
| Total weight: | ~165g | including battery |
Values may vary with customised probes!
Documents
| Document | Format | Language(s) |
|---|---|---|
| Datasheet – DTM3000-spezial Technical Specification |
  |
|
| Operating Instructions – DTM3000-spezial Installation and operating manual |
|
Software
| Program / Package | Format | Language(s) |
|---|---|---|
| Service Program – DualDevice for Windows-PCs Parameterization Software |
ZIP | |
