Transmitter LKM212
Transmitter LKM212 for thermocouples
The LKM212 is an analog transmitter for mounting on the standard rail and can be designed for various thermocouples according to DIN EN 60584 and DIN 43710. It converts the temperature-dependent thermoelectric voltage of the sensor into a standard signal of 0...10V. The temperature compensation takes place in the transmitter itself. The transmitter is supplied calibrated to customer specifications. By means of span and zero controllers, a subsequent fine adjustment can be carried out on site.
Configuration and Selection:
The selection menu is available for standard configuration and can be used for typical settings.
The selection menu is available for standard configuration and can be used for typical settings.
Custom Measurement Ranges:
These can be specified directly in the optional comment field below the selection menu.
Important Conditions: Please ensure that the measurement range falls within the specification limits of the respective sensor and has a minimum span of 200K. This guarantees that the desired range is technically feasible.
Our team will review your order for feasibility. If any issues arise, we will contact you to find a suitable solution.
These can be specified directly in the optional comment field below the selection menu.
Important Conditions: Please ensure that the measurement range falls within the specification limits of the respective sensor and has a minimum span of 200K. This guarantees that the desired range is technically feasible.
Our team will review your order for feasibility. If any issues arise, we will contact you to find a suitable solution.
| Thermocouple | Measurement range in °C |
|---|---|
| Type B* | 0 – 1820 |
| Type E | -270 – 1000 |
| Type J | -210 – 1200 |
| Type K | -270 – 1372 |
| Type L | -200 – 900 |
| Type N | -270 – 1340 |
| Type S* | -50 – 1767 |
| Type T | -270 – 400 |
| Type U | -50 – 600 |
| * with higher linearity error | |
| Feature | Value | Remark |
|---|---|---|
| Input | Thermocouples: K, J, L, T, U, E, N, S, B | N, S, B with higher error |
| Zero | >-200 – 600 °C | depending on thermocouple |
| Span | > 200 K | depending on thermocouple |
| Linearity error | < 1 % FS | depending on thermocouple |
| Reference-junction error | <±0,5 °C | |
| Supply voltage | 15 – 35 VDC, 15 – 26 VAC | reverse-polarity protected |
| Max. current consumption | 20 mA | |
| Output | 0 – 10 V | |
| Sensor break | > 10 V | |
| Short-circuit | voltage value corresponding to room temperature | |
| Response time | < 0.1 s | |
| Temperature coefficient | < 100 ppm/°C | |
| Operating temperature range | -25 – 85 °C | |
| Humidity | < 95 % | |
| Mounting | 35 mm rail | |
| Material | Polycarbonate | |

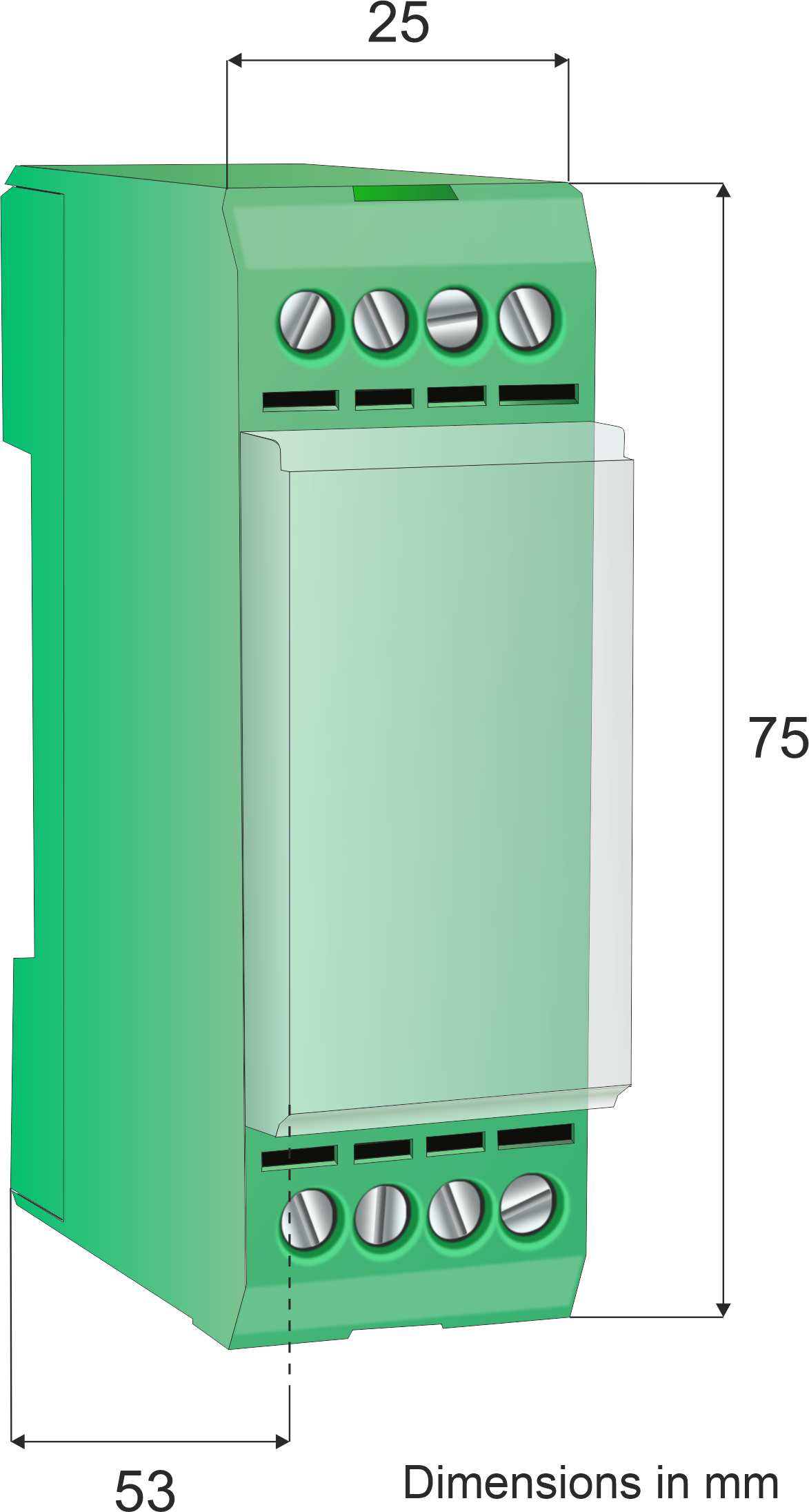

| Dimensions | 75 × 25 × 53 mm | H x W x D |
| Terminal type | Screw terminals | |
| Terminal cross-section | 0.2 – 2.5 mm² | |
| Weight | approx. 60 g | |
| Vibration | 5 g / 10 – 200 Hz | |
| EMC | EN 61326-1 EN 61326-2-3 |
Emission and immunity |
