Cable probe LKM433
LKM433 - Cable probe for voltage output 0...10V

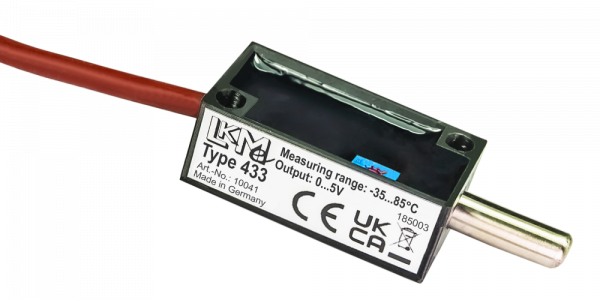

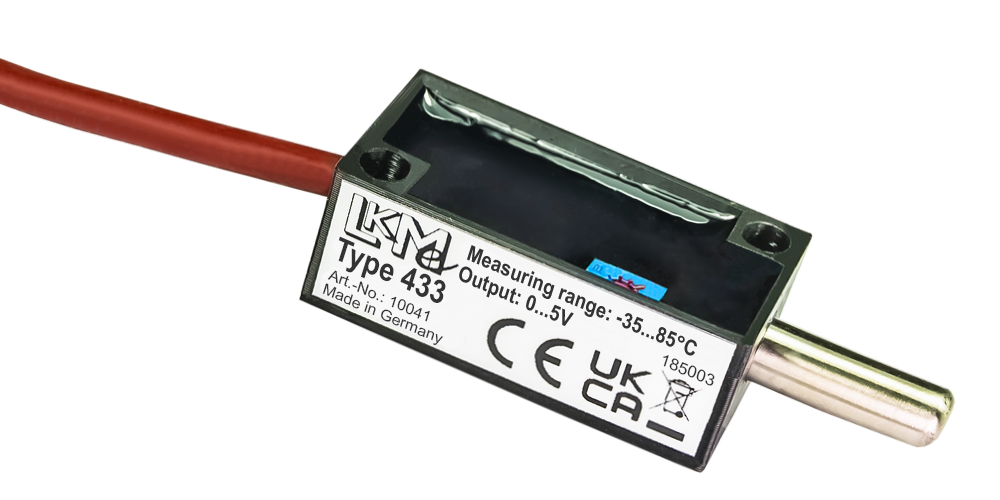

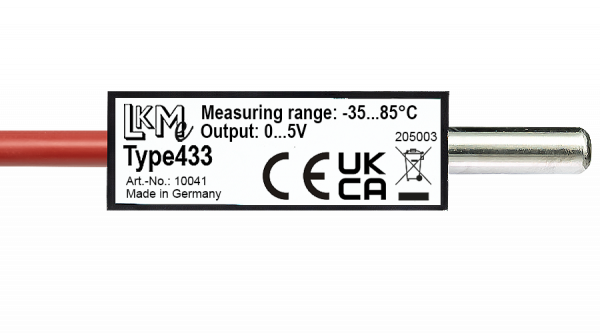

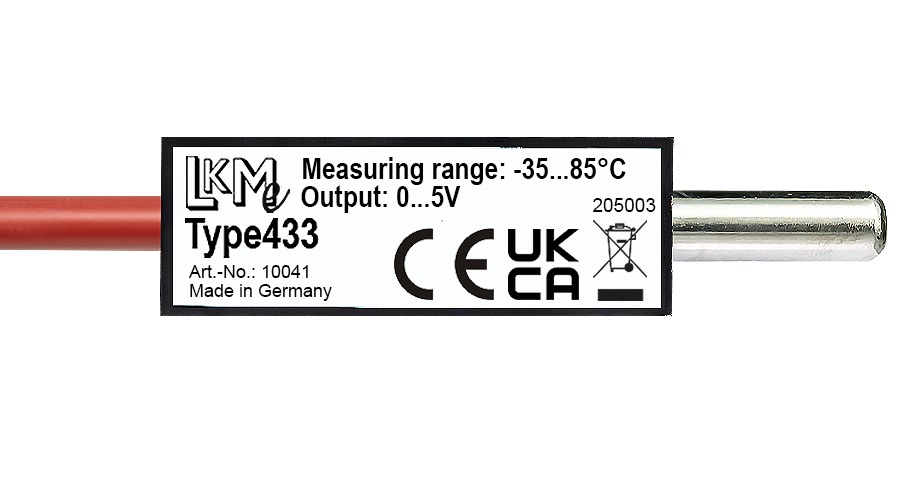

The LKM433 is a cable probe with integrated measuring transducer and voltage output 0...10V. It is suitable for direct connection to evaluation devices with voltage output such as PC cards or PLCs. The LKM433 has a typical accuracy of ±0.5°C. The sensor is delivered fully calibrated. Minor corrections can be made on site by means of a controller on the underside. Due to its design, this probe is suitable for outdoor installation. The degree of protection is IP64. The maximum measuring range is between -30 and 85°C. In addition to the standard measuring ranges, customer-specific measuring ranges can also be supplied. The cable sensor LKM433 is delivered with a cable length of 1.0m.The selection menu is available for configuration.
Please request individual measuring ranges beforehand using the >>Ask about product<< button.
| Feature | Value | Remark |
|---|---|---|
| Input | Semiconductor sensor | |
| Measuring range | max. -30 – 85 °C | Customizable |
| Supply voltage at 0 – 10 V | 15 – 30 VDC, 15 – 26 VAC | Reverse-polarity protected |
| Supply voltage at 0 – 5 V | 10 – 30 VDC, 10 – 26 VAC | Reverse-polarity protected |
| Max. current consumption | 5 mA | |
| Output | 0 – 10 V, 0 – 5 V | Other output voltages available |
| Measurement error | typ. ±0.5 °C | |
| Maximum error | 0.8 °C | |
| Operating temperature range | -30 – 85 °C | |
| Humidity | < 95 % | |
| Connection | Cable permanently attached | Standard 1 m silicone cable, 3‑wire |
| Sensor length | 12 mm | |

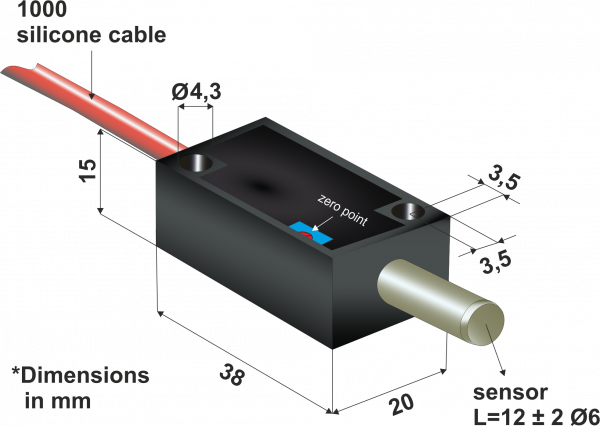

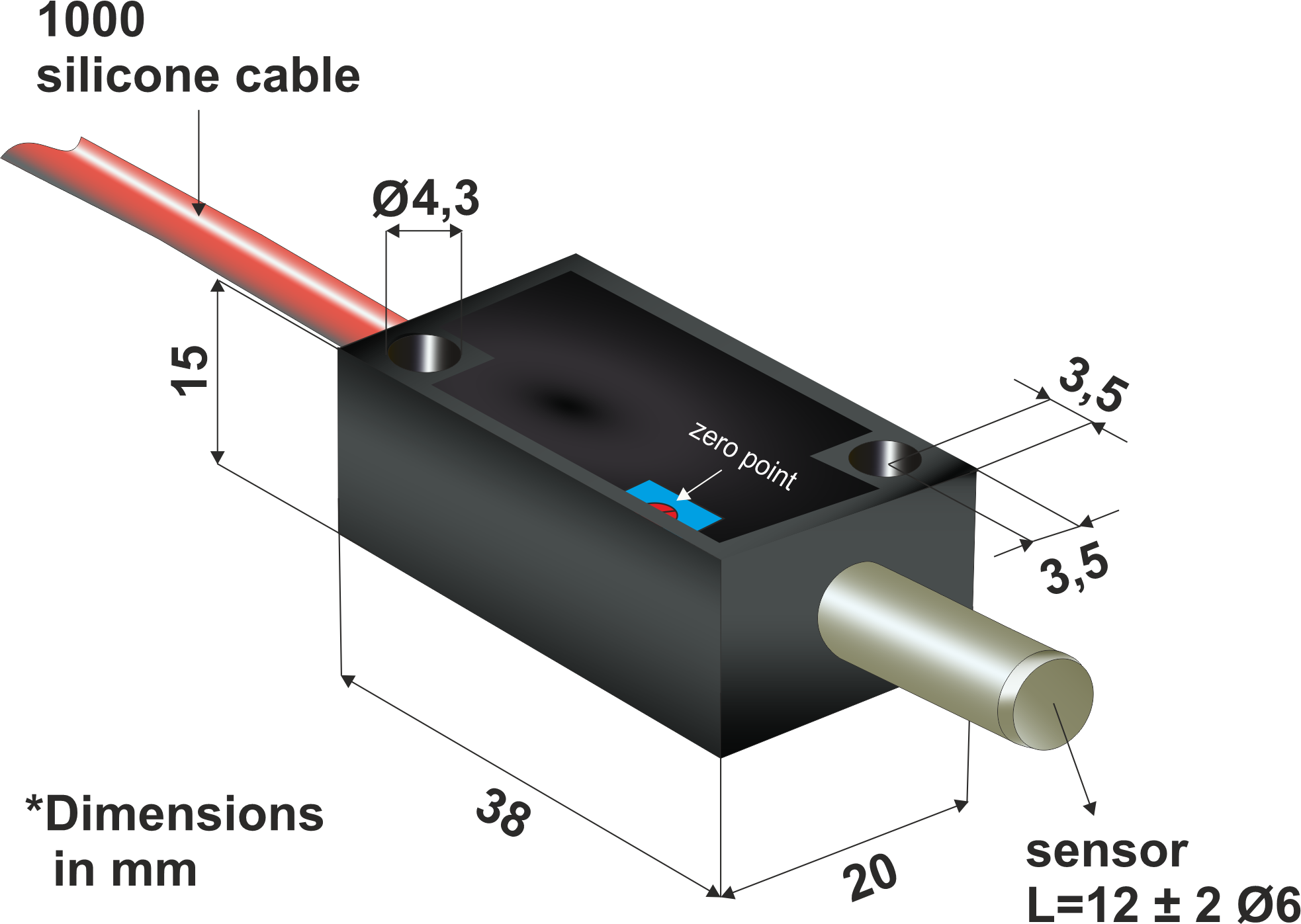

| Dimensions | 20 x 38 x 15 mm | W x L x H without sensor |
| Weight | approx. 30 g | |
| Housing | PVC black | |
| Encapsulation | Polyurethane, black | |
| Material | Polycarbonate | |
| Protection class | IP 64 | |
| EMC | EN 61326-1, EN 61326-2-3 | Emission and immunity |
