Product No.:
200875
about 2 Weeks about 2 Weeks
42,01 EUR

incl. 19% tax excl. Shipping costs

Add to wish list
Ask about product
Description

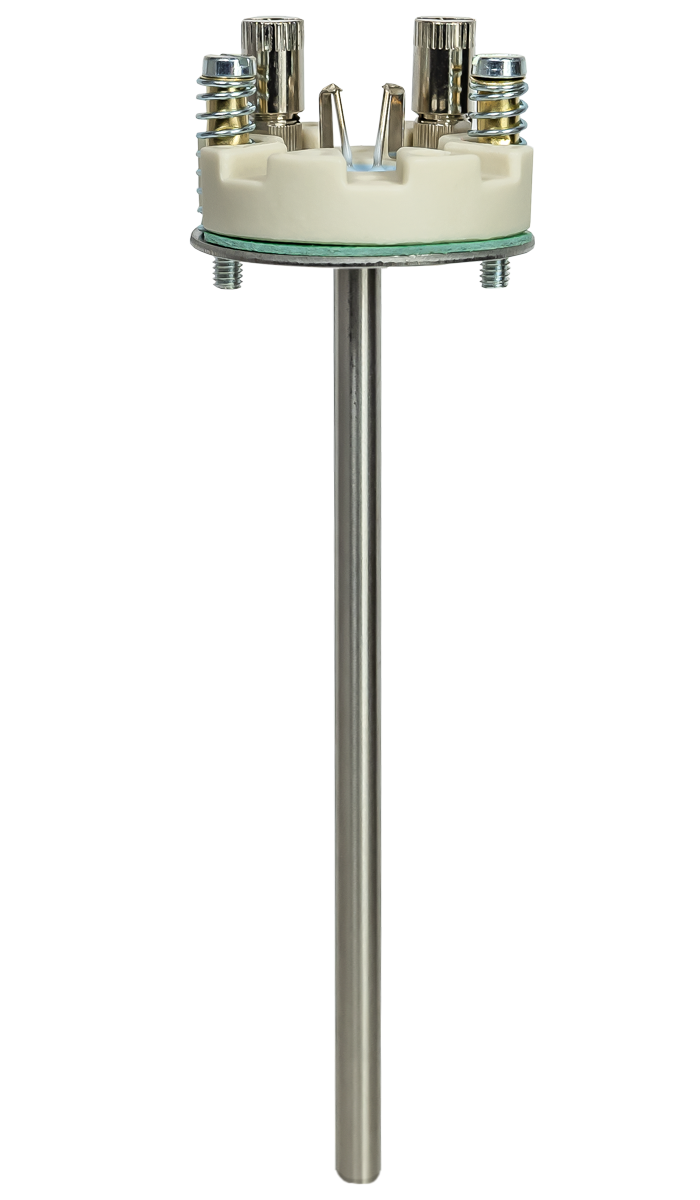

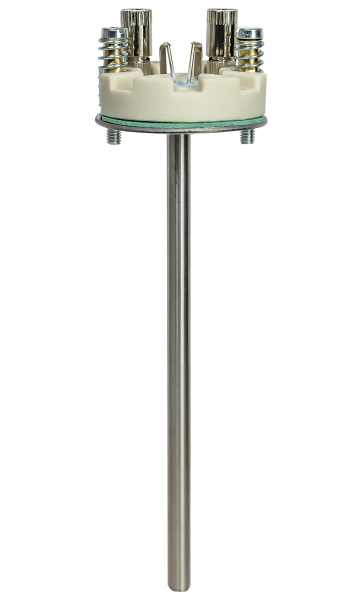

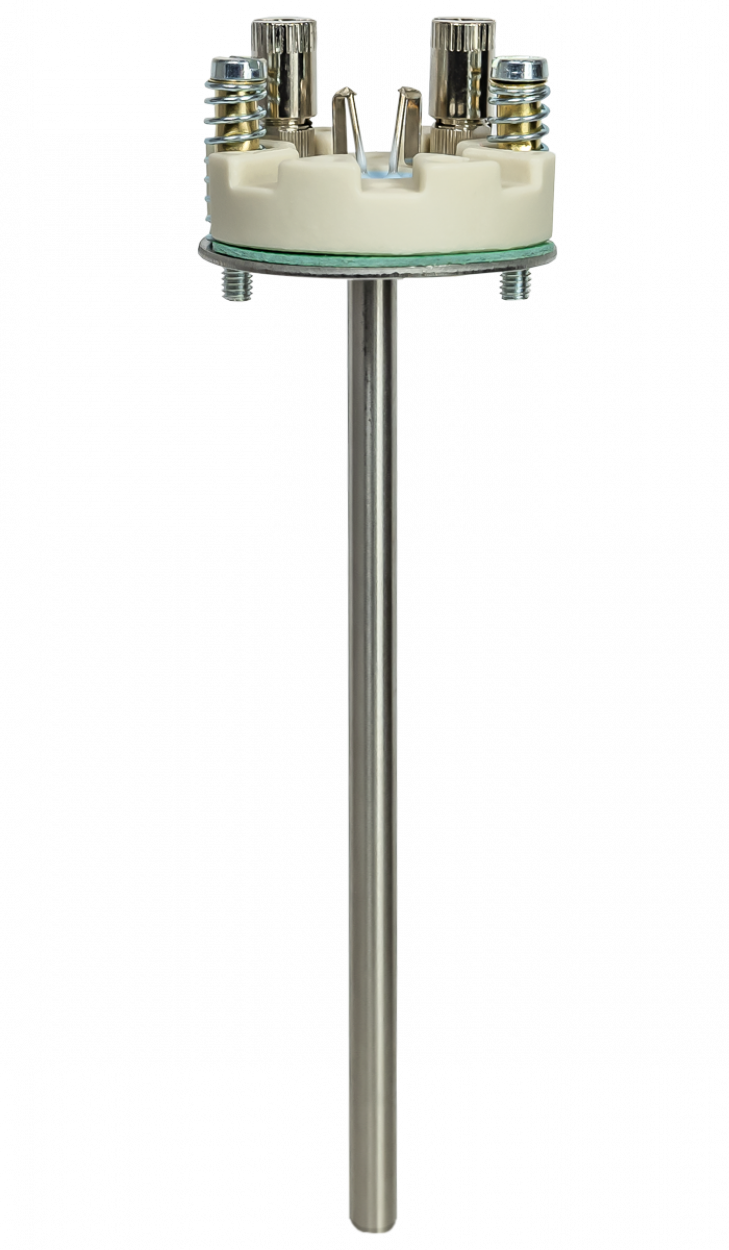

Type360 Measuring Insert

The Type360 measuring insert was specially designed for installation in existing protective fittings. It is ideal for retrofitting, replacing or maintaining temperature measuring points that already have a thermowell. This model is available in a standard version at a fixed price.

If your application has special requirements, please click the "Ask about Product" button. We will gladly provide you with a customized offer.

Please note that the drawings and images shown are for illustrative purposes only and may differ from the actual product.


Suitable head transmitters for Type360

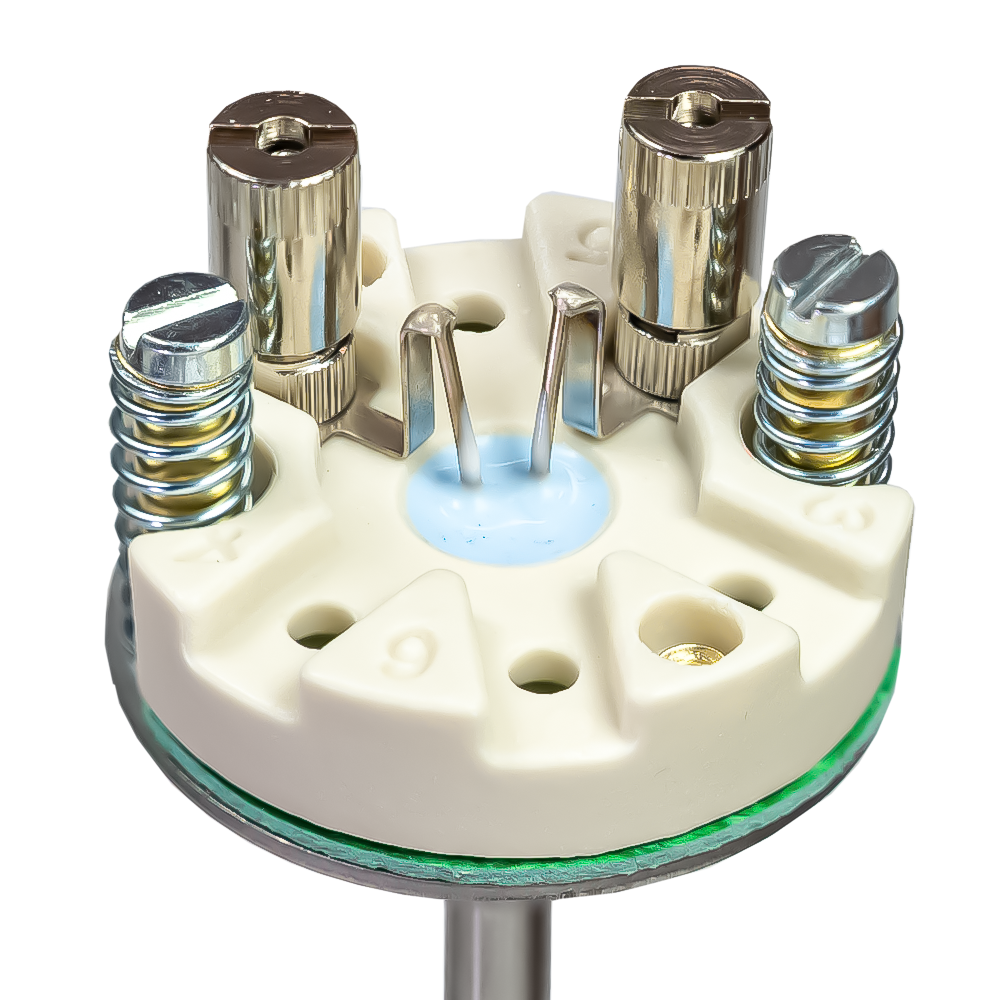

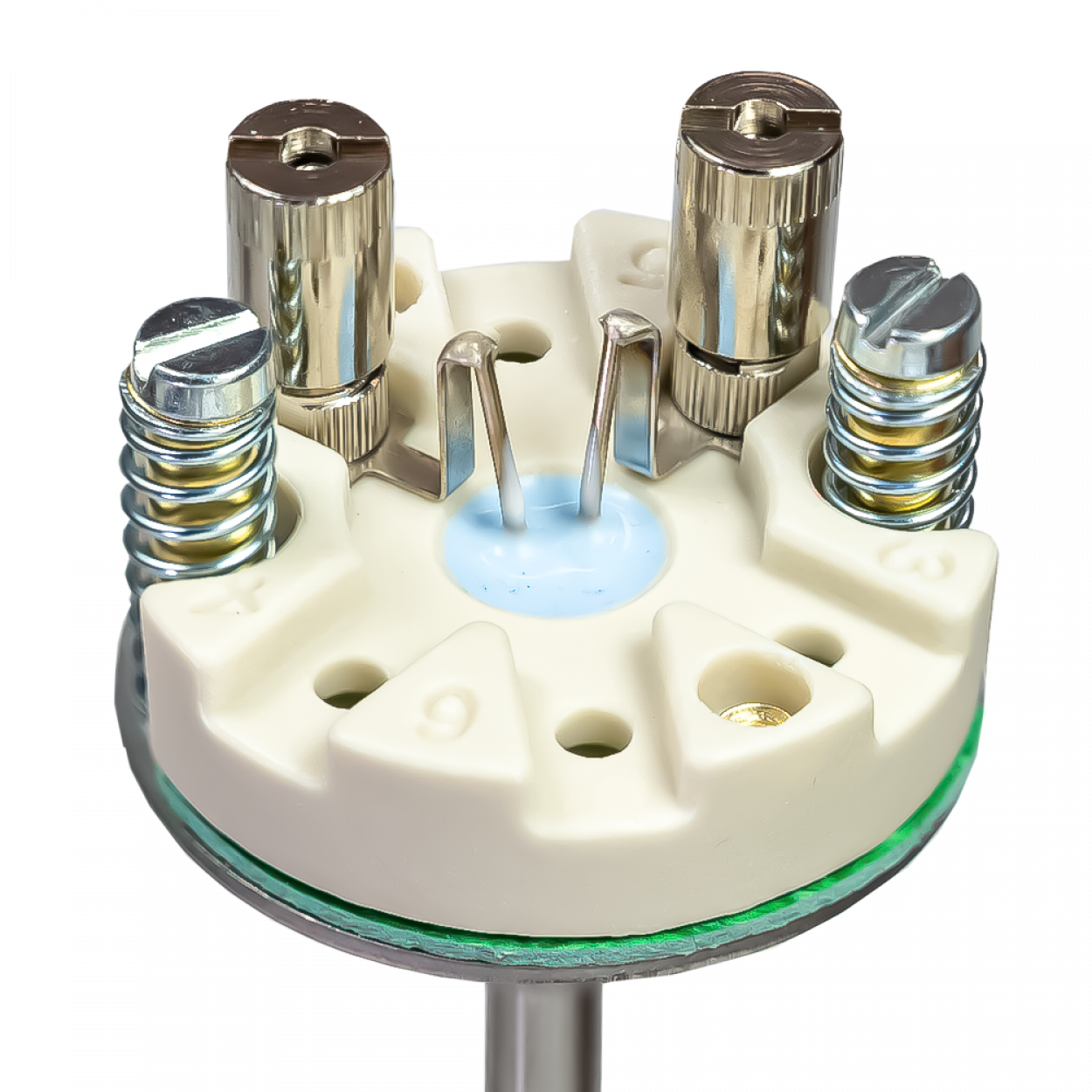

We offer suitable head-mounted transmitters for the Type360 insert. If you order the temperature probe with a transmitter, we will install it on the insert free of charge. In this case, the mounting base is omitted and replaced by the transmitter.

Technical Data
Feature Specification
Temperature sensor Pt100 according to DIN EN 60751
Number of RTDs 1
Accuracy class F0,3
Circuit type 2-wire circuit
Installation length L 100mm (other lengths on request)
Temperature range -50 to +400°C
Thermowell material 1.4571 (other materials on request)
Thermowell diameter d 6mm
Optional versions Available on request

Optional versions available on request:
  • Other temperature sensors (e.g. Pt1000)
  • Dual temperature sensors
  • Accuracy class F0.15 or W0.15 according to DIN EN 60751
  • 3- or 4-wire circuit
  • Longer or shorter nominal lengths
  • Other thermowell materials (e.g. 1.4571, 1.4841, 2.4816)
  • Other thermowell diameters
  • Operating temperature -200 to +600°C

Hersteller Informationen

electrotherm
electrotherm Gesellschaft für Sensorik und thermische Messtechnik mbH
Gewerbepark 6
99331 Geratal
Germany
https://www.electrotherm.de/en/home/

This product is compatible with (for example):

LKM103
Transmitter LKM103
Analog transmitter
Input: Pt100 or Pt1000 in 3/2-wire circuit
Output signal: 4...20mA
B-head
54,26 EUR
LKM104
Transmitter LKM104
Analog transmitter
Input: Pt100 or Pt1000 in 3/2-wire circuit
Output signal: 0...10V
B-head
54,26 EUR
LKM120
Transmitter LKM120
Digital transmitter, programmable
Input: Pt100 and Ni100 in 4-/3-/2-wire circuit
Output signal: 4...20mA
B-head
53,55 EUR
LKM121
Transmitter LKM121
Digital transmitter, programmable,
galvanically isolated
Input: Pt100/500/1000/Ni100 in 4-/3-/2-wire circuit, thermocouple, resistance and voltage
Output signal: 4...20mA
B-head
97,58 EUR
LKM113
Transmitter LKM113
Digital transmitter, configurable via DIP switches
Input: Pt100 and Pt1000 in 3/2-wire circuit
Output signal: 4...20mA
B-head
54,26 EUR
LKM114
Transmitter LKM114
Digital transmitter, configurable via DIP switches
Input: Pt100 and Pt1000 in 3/2-wire circuit
Output signal: 0...10V
B-head
54,26 EUR
LKM105
Limit Switch LKM105
Digital temperature limit switch, configurable via DIP switch
Input: Pt100 in 2-wire circuit
Output: switching signal, relay
B-head
49,03 EUR
LKM108
Transmitter LKM108
Analog transmitter
Input: Pt100 or Pt1000 in 2-wire circuit
Output signal: 0...20mA
B-head
64,62 EUR
LKM424
Transmitter LKM424
Analog transmitter
Input: Pt100 or Pt1000 in 3/2-wire circuit
Output signal: 0...10V
B-head
Output signal has larger tolerance than LKM104
46,53 EUR
LKM136
Limit Switch LKM136
Digital temperature limit switch, programmable
Input: Pt100/1000 and Ni100/1000 in 2-wire circuit
Output: switching signal, relay
Self-locking programmable
B-head
47,72 EUR
