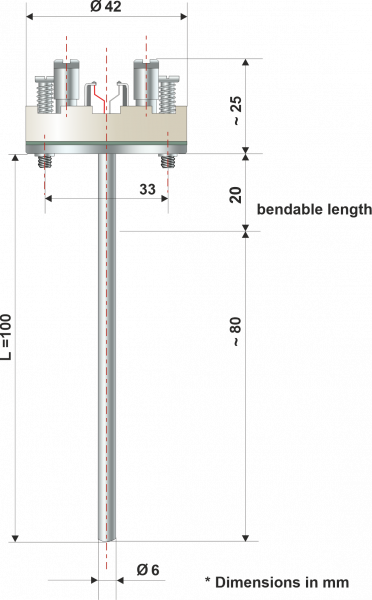

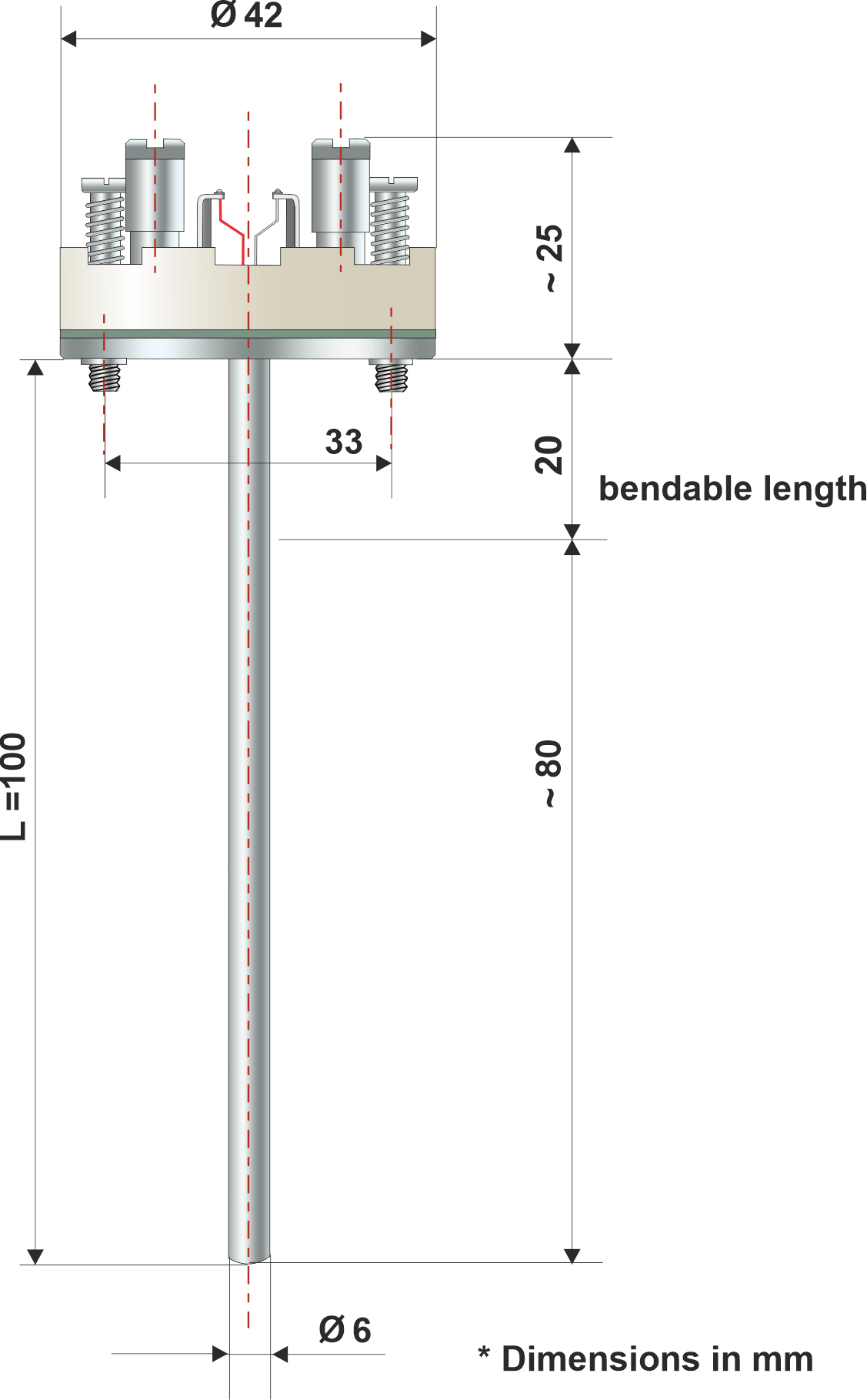

The price quoted applies to the following geometric dimensions and to resistance thermometers with individual measuring resistors
Tolerance class B according to DIN EN 60751 (±0.3°C) in 2-wire circuit.
| Type |
Sensor |
Mounting length (l1/mm) |
Extensions length (l2/mm) |
Protection tube material |
Process connection |
diameter (mm) |
| 370 |
1xPt100
W0,3, 2L |
100 |
- |
1.4571 |
- |
6 |
Other technically possible dimensions:
Pt100, Pt500, Pt1000 or according to order; single or double; Accuracy
Class A, B or according to order; 2-, 3- or 4-wire circuit, various temperature ranges
L=
on request
Protection tube diameter
d=6mm
on request
- Protection tube material:
1.4571
on request
For laboratory purposes or for installation in protective fittings
Ordering information for resistance thermometers:
- Solderable and adjustable screw connections made of stainless steel or aluminium with clamping rings made of Teflon or V2A are available as accessories. We also offer immersion sleeves and flanges to complete our products.
- All resistance thermometers with B-head can be supplied with transmitters. The price then results from the sum of the individual prices. Installation costs are not charged.
- Of course, we also supply other tolerance classes (e.g. class A, 1/10 DIN) and basic values as well as 3- and 4-wire circuits.
